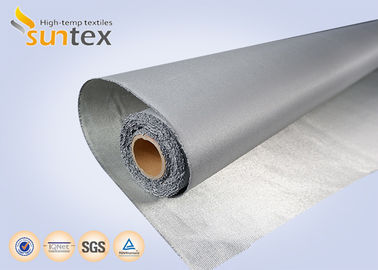

PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems

  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
  • PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems
Plaats van herkomst China
Merknaam SUNTEX
Modelnummer GF430P-PU21A-2006
Min. bestelaantal 500 meter
Prijs FOB Shanghai 2.3-5.6 $/sqm
Verpakking Details Elke rol in de doos, verschillende dozen op de pallets
Levertijd 5-15 werkdagen
Betalingscondities T/T, L/C, D/P, Western Union
Levering vermogen 50000 meter per maand

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Gewicht 460 g/m² Dikte 0,41 mm
Kleur Blauw / zwart Wevende tape Twill weven
Breedte 1 m/1,3 m/1,5 m/1,52 m/1,55 m coating Polyurethaan
Markeren

fire resistant PU fiberglass fabric

,

460gsm PU coated fabric

,

fiberglass fabric for duct systems
Laat een bericht achter
Productomschrijving

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.



Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PU21A-2006
Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 0PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 1PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 2PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 3

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 4PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 5PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 6PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 7PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 8PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 9PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 10PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 11PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 12PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 13PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 14PU Coated Fiberglass Fabric 460gsm Fire Resistant for Duct Systems 15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
